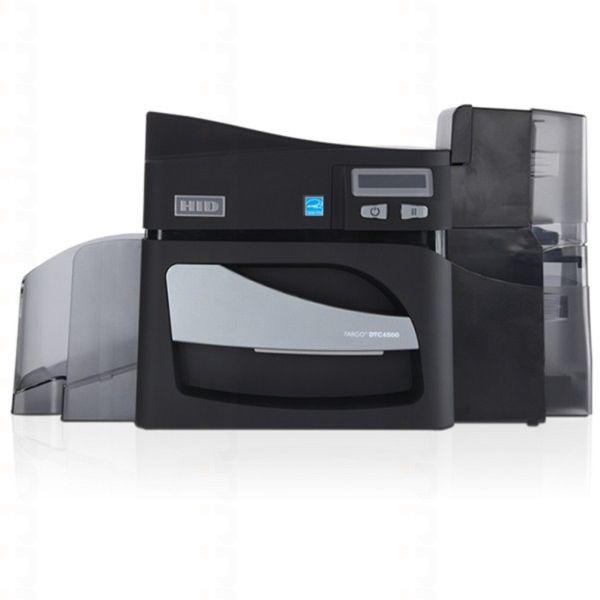

Fargo DTC4500e (49100) double-sided ID card printer.
The DTC4500e from Fargo excels at its adaptability to your companies growing and future needs. Professional quality color ID card printing, small footprint and high quality components all extend the life of your investment beyond expectation. As demands change over time from card volume, to security, the DTC4500e gives you the option of field upgrading to double-sided printing, and encoding.
The DTC4500e also gives you the choice for single and double sided lamination modules. Lamination protects and extends the life of your cards by adding a barrier from card reader abrasion, chemicals, UV exposure. In addition, Lamination saves you time by removing the need for rebadging and money additional stock and ribbon purchases.
The DTC4500e’s ability to evolve with time, small foot print for flexibility in the office, and replacement ribbon cartridges, all provide you with exceptional value from a trusted name in identification security.
High-volume performance
Built for organizations that require robust, high-volumeprinting every day. Standard features include high-capacity ribbon supplies and dual input card hoppers that allow for maximum card input capacity and management of multiple card types. The DTC4500e is an ideal solution for Healthcare cards, Education ID, Transportation ID, and Access Control Cards.
Highly versatile
The modular design allows organizations to build upon their investment by adding field-upgradable modules, such as dual-sided printing and technology card encoding
Maximum security
Optional single- or dual-sided simultaneous lamination offers enhanced card security and durability. Highly versatile. The DTC4500 offers a variety of contact and contactless encoding modules to integrate with your organizations Access Control and security systems.
7 seconds per card (K*); 12 seconds per card (KO*); 24 seconds per card (YMCKO*); 31 seconds per card (YMCKOK*)
Card Sizes
CR-80 (3.375˝ L x 2.125˝ W / 85.6 mm L x 54 mm W); CR-79 Adhesive Back (3.313˝ L x 2.063˝ W / 84.1 mm L x 52.4 mm W)
Card Thickness
.009˝ - .040˝ / 9 mil - 40 mil / .229 mm - 1.016 mm
Card Capacity
Dual-input hopper (200-cards), 100-card stacker.
Card Cleaning
Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change)
Memory
32 MB RAM
Software Drivers
Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008 / Windows® 7 / MAC OS X 10.5/10.6 / Linux***
Interface
USB 2.0 and Ethernet with internal print server
Operating Temperature
65° to 80° F / 18° to 27° C
Humidity
20 – 80% non-condensing
Dimensions
Single-Sided Printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm D Dual-Sided Printer: 9.8˝ H x 18.7˝ W x 9.2˝ D / 249 mm H x 475 mm W x 234 mm D Printer + Lam: 18.9˝ H x 18.7˝ W x 9.2˝ D / 480 mm H x 475 mm W x 234 mm D
Printer – Two years; Printhead – Two years, unlimited pass with UltraCard™
Encoding Options
125 kHz (HID Prox) reader; 13.56 MHz (iCLASS®, MIFARE®, ISO 14443 A/B, ISO 15693) read/write encoder; Contact Smart Card Encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3
Options
Single Wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS® and contact smart card encoding); Dual-Sided Printing Module - Upgradable; Dual-Input Card Hopper (200 cards) - Upgradable; Same-Side Input/Output Card Hopper - Upgradable; Contactless Smart Card Encoding - Upgradable; Contact Smart Card Encoding - Factory Upgrade; Magnetic Stripe Encoding - Upgradable; Printer Cleaning Kit; Ethernet with Internal Print Server - Upgradable
