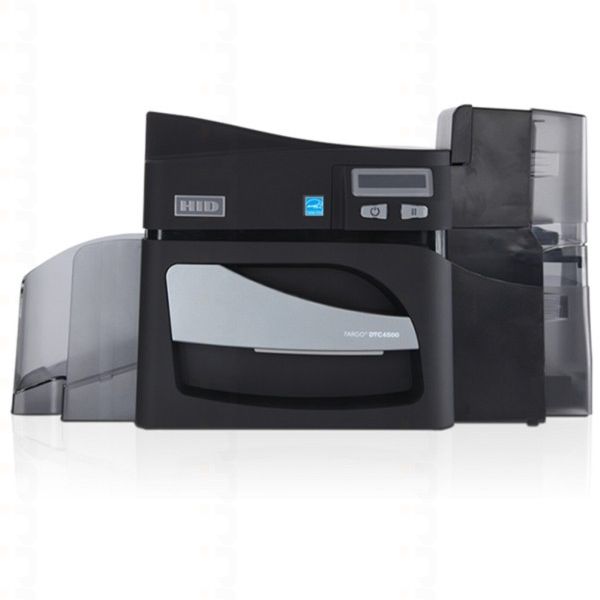

Fargo DTC4500 Double-SidedID Card Printer - Single Side Lamination

$5,699.00 $5,699.00 What's this?

Fargo DTC4500 double-sided ID card printer with Single Side Lamination Comes with USB and Ethernet interfaces and 2 year printer & print head warranty.

Availability: In stock

Fargo DTC4500 (49100) double-sided ID card printer with single side lamination.

The DTC4500 from Fargo excels at its adaptability to your companies growing and future needs.  Professional quality color ID card printing, small footprint and high quality components all extend the life of your investment beyond expectation. As demands change over time from card volume, to security, the DTC4500 gives you the option of field upgrading to double-sided printing, and encoding.

The DTC4500 also gives you the choice for single and double sided lamination modules.  Lamination protects and extends the life of your cards by adding a barrier from card reader abrasion, chemicals, UV exposure.  In addition, Lamination saves you time by removing the need for rebadging and money additional stock and ribbon purchases.

The DTC4500’s ability to evolve with time, small foot print for flexibility in the office, and replacement ribbon cartridges, all provide you with exceptional value from a trusted name in identification security.

High-volume performance

Built for organizations that  require robust, high-volumeprinting every day. Standard features include high-capacity ribbon supplies and dual input card hoppers that allow for maximum card input capacity and management of multiple card types.  The DTC4500 is an ideal solution for Healthcare cards, Education ID, Transportation ID, and Access Control Cards.

Highly versatile

The modular design allows organizations to build upon their investment by adding field-upgradable modules, such as dual-sided printing and technology card encoding

Maximum security

Optional single- or dual-sided simultaneous lamination offers enhanced card security and durability.
Highly versatile.  The DTC4500 offers a variety of contact and contactless encoding modules to integrate
with your organizations Access Control and security systems.

More Information

Printer Specifications

Print Method Dye-Sublimation / Resin Thermal Transfer
Resolution 300 dpi (11.8 dots/mm) continuous tone.
Print Speed 7 seconds per card (K*); 12 seconds per card (KO*); 24 seconds per card (YMCKO*); 31 seconds per card (YMCKOK*)
 Card Sizes CR-80 (3.375˝ L x 2.125˝ W / 85.6 mm L x 54 mm W); CR-79 Adhesive Back (3.313˝ L x 2.063˝ W / 84.1 mm L x 52.4 mm W)
Card Thickness .009˝ - .040˝ / 9 mil - 40 mil / .229 mm - 1.016 mm
Card Capacity Dual-input hopper (200-cards), 100-card stacker.
Card Cleaning Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change)
Memory 32 MB RAM
Software Drivers Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008 /
Windows® 7 / MAC OS X 10.5/10.6 / Linux***
Interface USB 2.0 and Ethernet with internal print server
Operating Temperature 65° to 80° F / 18° to 27° C
Humidity 20 – 80% non-condensing
Dimensions Single-Sided Printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm D
Dual-Sided Printer: 9.8˝ H x 18.7˝ W x 9.2˝ D / 249 mm H x 475 mm W x 234 mm D
Printer + Lam: 18.9˝ H x 18.7˝ W x 9.2˝ D / 480 mm H x 475 mm W x 234 mm D
Weight Single-Sided Printer: 9lbs / 4.1 Kg; Dual-Sided Printer: 11lbs / 5 Kg; Printer + Lam: 20 lbs / 9.1 Kg
Power Source 100-240 VAC, 3.3 A, 50 Hz / 60 Hz
Warranty Printer – Two years; Printhead – Two years, unlimited pass with UltraCard™
Encoding Options 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS®, MIFARE®, ISO 14443 A/B, ISO 15693) read/write encoder; Contact Smart Card Encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3
Options Single Wire Ethernet and USB 2.0 interface for inline printing and
encoding (note: single wire Ethernet encoding is only available for iCLASS® and contact smart card encoding); Dual-Sided Printing Module - Upgradable; Dual-Input Card Hopper (200 cards) - Upgradable; Same-Side Input/Output Card Hopper - Upgradable; Contactless Smart Card Encoding - Upgradable; Contact Smart Card Encoding - Factory Upgrade; Magnetic Stripe Encoding - Upgradable; Printer Cleaning Kit; Ethernet with Internal Print Server - Upgradable
Display User friendly, SmartScreen™ graphical display
Printer Security Printer access password protected; Kensington® lock compatibility
